Understanding building codes related to stucco weep screed is crucial for both professionals and homeowners. This detailed guide aims to demystify these codes, providing clarity and insight into their application in stucco and stone projects.
Code Requirements for Stucco Weep Screed
Building codes, particularly the International Building Codes (IBC), detail specific requirements for weep screed in stucco systems. These codes are widely adopted at state and local levels to ensure uniformity and safety in construction practices.
- Weep Screed Dimensions: The code mandates a minimum thickness for the weep screed and a flange length of at least 3-1/2″. The flange is the back metal piece of the weep screed. Materials specified include galvanized metal or plastic, with alternatives like aluminum and stainless steel offered by various manufacturers.
- Installation Location: Weep screeds must be installed at or below the plate line (the bottom plate of the wall). Typically, the weep screed extends about an inch below the bottom plate, allowing water to exit onto the foundation.

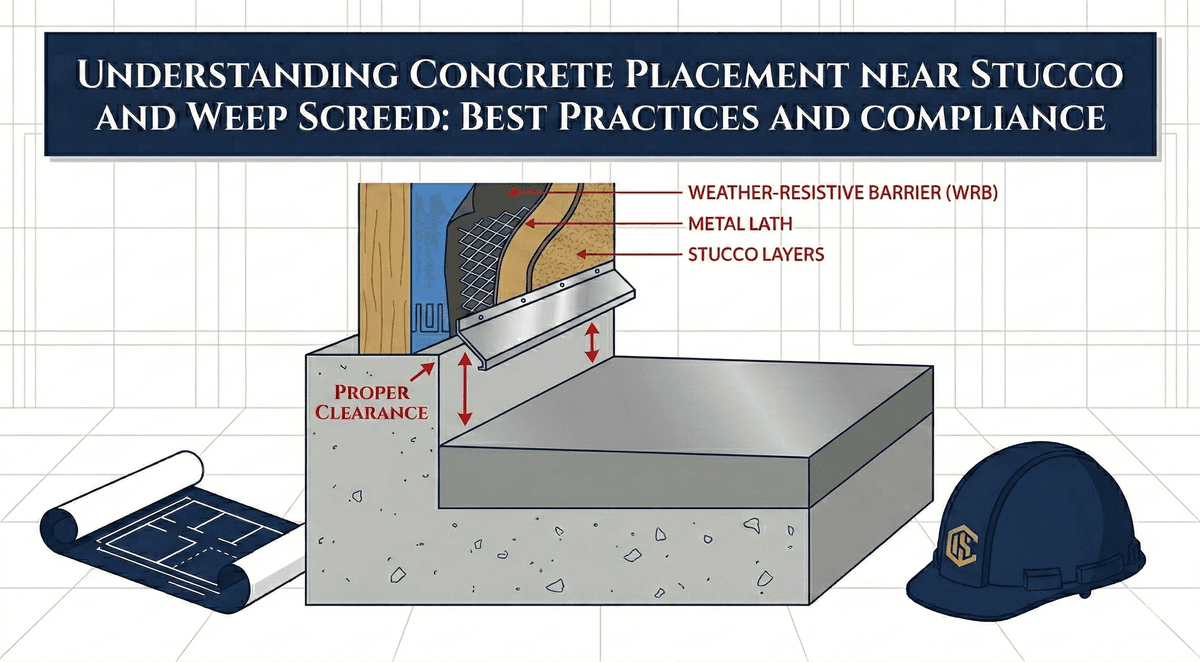

- Clearance Requirements: The code specifies minimum clearance from the ground for effective water management. A 4″ gap is required for soil or dirt, while a 2″ gap is necessary for hard surfaces like concrete, asphalt, or pavers.
- Weep Holes and Functionality: Weep holes must be present and functional to allow water egress. This contrasts with plaster stop, a “J” shaped metal without holes, used in different applications like around exterior doors or electrical panels.
- Overlap of Water Resistive Barrier and Wire: The water resistive barrier should overlap the weep screed’s back flange, with the wire mesh (applied after the barrier) terminating on the flange. Typically, the barrier covers the entire flange up to the start of the weep holes, with the wire mesh ending at the same point, although the code allows for termination anywhere on the flange.
Understanding Technical Terms
- Weep Flange: The back part of the weep screed that attaches to the wall.
- Water Resistive Barrier: A layer in the stucco system that prevents water penetration.
- Concrete Pavers: Hard, flat stones used in paving, requiring a 2″ clearance from weep screed.
Professional Qualifications and Code Interpretation
As a professional with experience in building code interpretation and stucco installations, I emphasize the importance of adhering
to these guidelines for safe and effective construction. It’s crucial to consult technical resources like the IBC or local building codes for specific details.
Potential Drawbacks and Risks
Non-galvanized materials, while viable options, may present challenges such as increased cost and maintenance requirements. Improper clearances or installation methods can lead to significant issues, including water damage and structural complications. DIY modifications or installations should be approached with caution and ideally under professional guidance to avoid these risks.
Importance of Transparency
In discussing weep screed products or installation techniques, I ensure transparency about any personal preferences or affiliations. My recommendations are based on professional experience and industry standards, rather than brand biases.
DIY Considerations
While DIY weep screed installation might be feasible for those with construction experience, it’s generally recommended only in specific scenarios. Understanding and following building codes is critical, and when in doubt, professional installation should be sought.
Enhancing Comprehension with Visual Aids
To aid understanding, visual aids like diagrams or real-world examples can be incredibly helpful. These visuals can illustrate different installation scenarios, material comparisons, and clarify the positioning of components like the weep flange and water resistive barrier.
Cost Considerations and Resources
Complying with building codes can have cost implications, depending on the materials and installation methods chosen. Homeowners should consider accessing local building codes and consulting with building inspectors for tailored guidance. Professional stucco contractors can ensure code-compliant installations, potentially saving costs on future repairs.
Potential Consequences of Code Violations
Improper installation of weep screed or failure to comply with codes can result in water intrusion, mold growth, and structural damage. It’s crucial to understand the potential risks associated with misinterpretations or inadequate DIY attempts.
Conclusion
This guide provides an essential overview of stucco weep screed building codes, focusing on the importance of correct installation and material choices. By adhering to these codes and seeking professional assistance when necessary, homeowners and builders can ensure the longevity and safety of their stucco installations.
